Parkinson’s disease is often a master of disguise. By the time its motor symptoms—tremors, rigidity, slowed movement—become noticeable, more than half of a patient’s dopamine-producing neurons may already be gone. That diagnostic delay can mean fewer treatment options and missed opportunities for early intervention. But a new device from UCLA’s Samueli School of Engineering may offer a way to catch the disease in its earliest whispers—through handwriting.

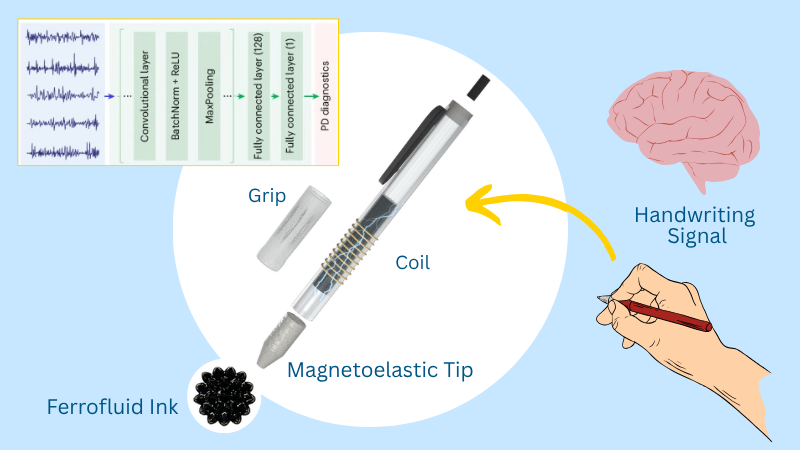

Led by Professor Jun Chen, the UCLA team has developed a 3D-printed, magnetoelastic smart pen that doesn’t write in ink, but in data. The pen features a soft silicone tip embedded with magnetic particles and uses ferrofluid ink—a liquid filled with tiny magnetic particles—to generate electrical signals as the user writes or draws. These signals, captured by a coil of conductive yarn wrapped around the pen’s barrel, are then analyzed by a neural network trained to detect the subtle motor irregularities associated with Parkinson’s.
Unlike traditional diagnostic tools that rely on expensive imaging or invasive biomarker tests, this pen is self-powered and low-cost. It doesn’t require batteries, specialized equipment, or even a writing surface. Whether the user is tracing spirals on paper or drawing shapes in the air, the pen converts motion into quantifiable data. That’s key, because Parkinson’s often reveals itself in micro-movements—tremors and hesitations too subtle for the naked eye but rich with diagnostic meaning.
In a pilot study involving 16 participants, including three with Parkinson’s, the pen achieved an average diagnostic accuracy of 96.22%. Participants were asked to perform simple writing tasks—drawing loops, lines, and letters—while the pen recorded their motion. The AI model then parsed the data to distinguish between healthy individuals and those with the disease. The results suggest that the pen could serve as a powerful screening tool, especially in resource-limited settings where access to neurologists and advanced imaging is scarce.
The science behind the pen is rooted in the magnetoelastic effect. As the pen’s tip deforms during writing, its magnetic properties shift. Simultaneously, the ferrofluid ink flows and reacts to these changes. Together, these movements induce a voltage in the pen’s internal coil, producing a stream of electrical signals that reflect the user’s motor control. It’s a clever fusion of materials science, bioengineering, and AI—wrapped in a device that looks deceptively simple.
What makes this innovation particularly compelling is its accessibility. Professor Chen envisions the pen being used in clinics, community health centers, and even at home, potentially linked to smartphone apps for remote analysis. That could democratize Parkinson’s screening, making it easier to catch the disease early and monitor its progression over time. It also opens the door to similar tools for other neurological conditions, where movement patterns serve as early warning signs.
Here’s a quick demo of the pen, provided by UCLA:
Article from UCLA: 3D-Printed Magnetoelastic Smart Pen May Help Diagnose Parkinson’s
Abstract from Nature Chemical Engineering: Neural network-assisted personalized handwriting analysis for Parkinson’s disease diagnostics
